RPS 3HP 80RPS30, Up to 100ft Head, 65 to 110GPM, Submersible Pump End + 3HP 220V Motor + Starter Box

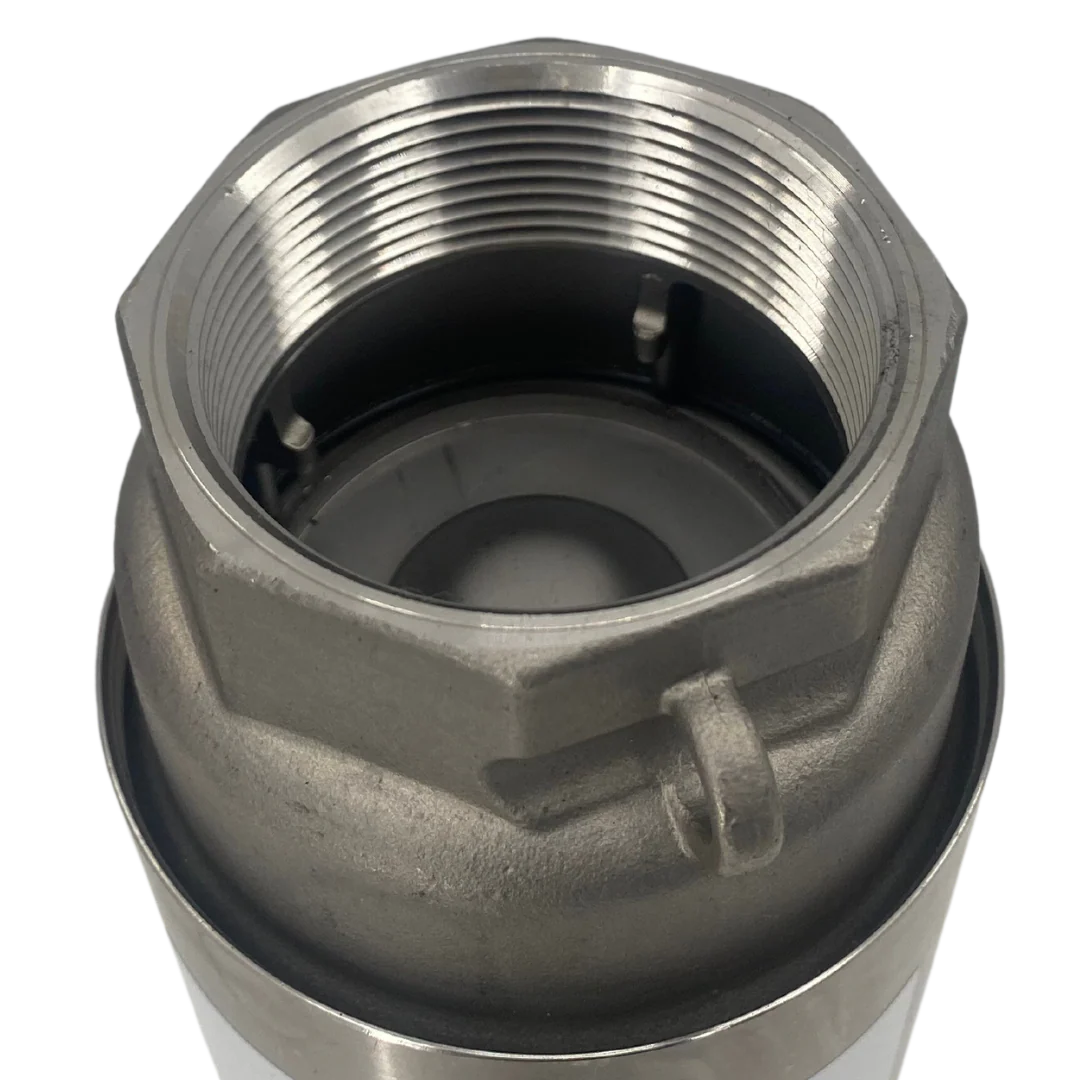

80RPS series pumps are designed for low flow applications of 120 GPM or under. They can be self-installed or placed using a local installer. At 75 feet of head the 80RPS30 will pump 90 GPM!Ā 2" FNPT Outlet.
This RPS pump uses a hearty 3 Wire Single Phase 3HP Motor and 3.85ā³ diameter pump end. The Outlet includes a built in check valve, most people add on an additional external check valve as well. The most efficientĀ brushless motors mean no replacement of carbon brushes and years of smooth, reliable performance. Impellers are made of a composite material resistant to abrasion and chemical damage. EncapsulatedĀ winding for superior short protection. The entire body is made of corrosion resistant 304 stainless steel, and compliant to all drinking water standards. Includes a starter box matched to the pump HP withĀ starting capacitor.Ā
Outlet Size: 2"Ā
ā Ā NSF Drinking Water and UL Compliant

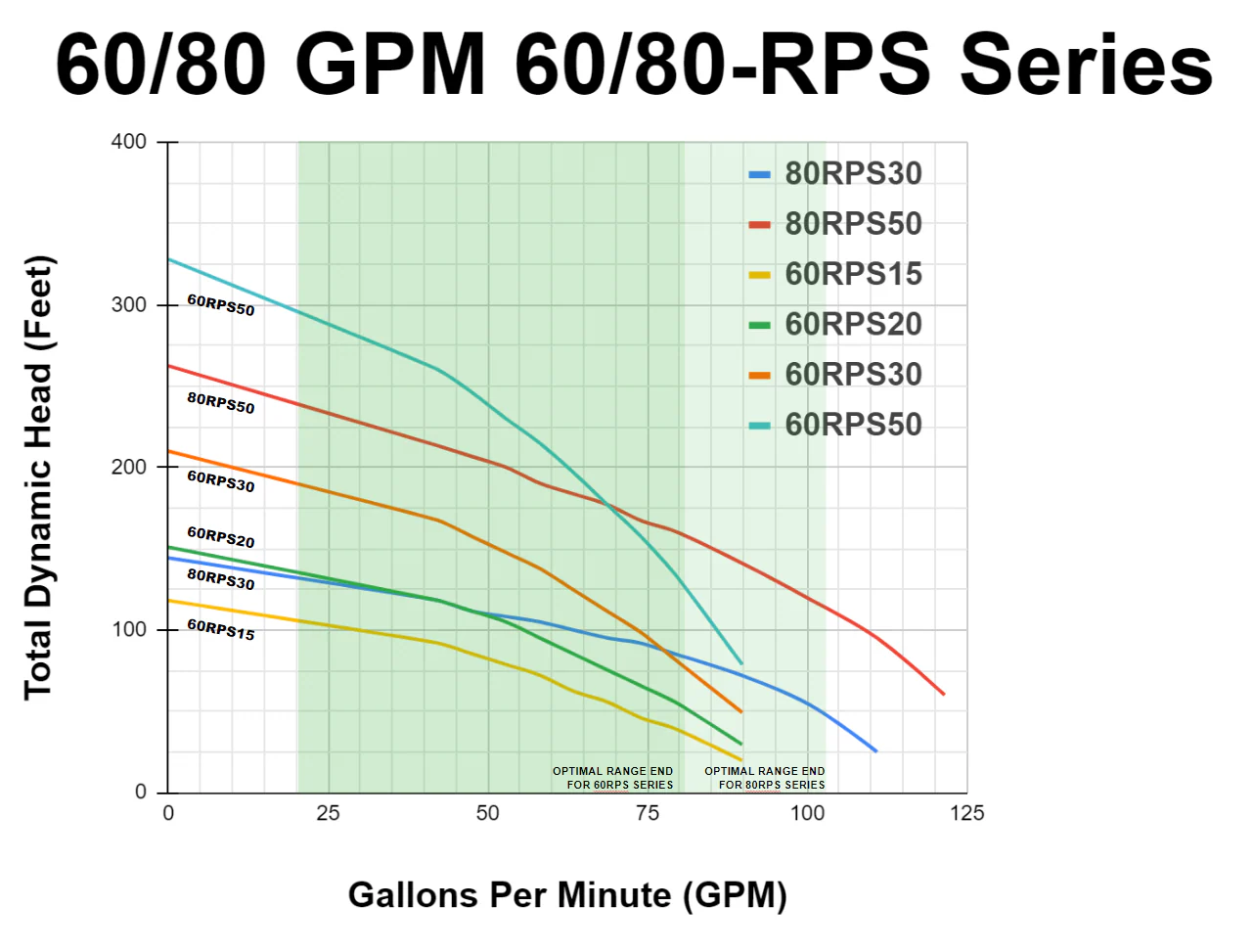

| Total Head | Gallons Per Minute (GPM) |
| No head | 110 |
| 25 feet | 100 |
| 50 feetĀ | 100 |
| 75 feetĀ | 90 |
| 100 feetĀ | 65 |
| Above 100 feetĀ | Size UpĀ for Optimal Performance |
Ā Ā
Using a pressure tank or pressure system? You'll need to add the depth of your well with the PSI in feet of head to get your "Total Head" number for sizing.Ā
10 PSI = 23 feet of headĀ
20 PSI = 46 feet of headĀ
30 PSI = 70 feet of headĀ
40 PSI = 90 feet of headĀ
50 PSI = 115 feet of headĀ
60 PSI = 140 feet of head
Example: 50 foot (well depth) + 90 feet of head (from a 40 PSI pressure tank) = 140 feet of total head. If your total head number exceeds this pumps ability range, size up to get a similar flow with higher head ability!Ā
Need more water? Check outĀ theĀ other 80RPS Series Models!Ā
