80RPS series pumps are designed for low flow applications of 120 GPM or under. They can be self-installed or placed using a local installer. At 150 feet of head the 80RPS50 will pump 85 GPM! 2" FNPT Outlet.

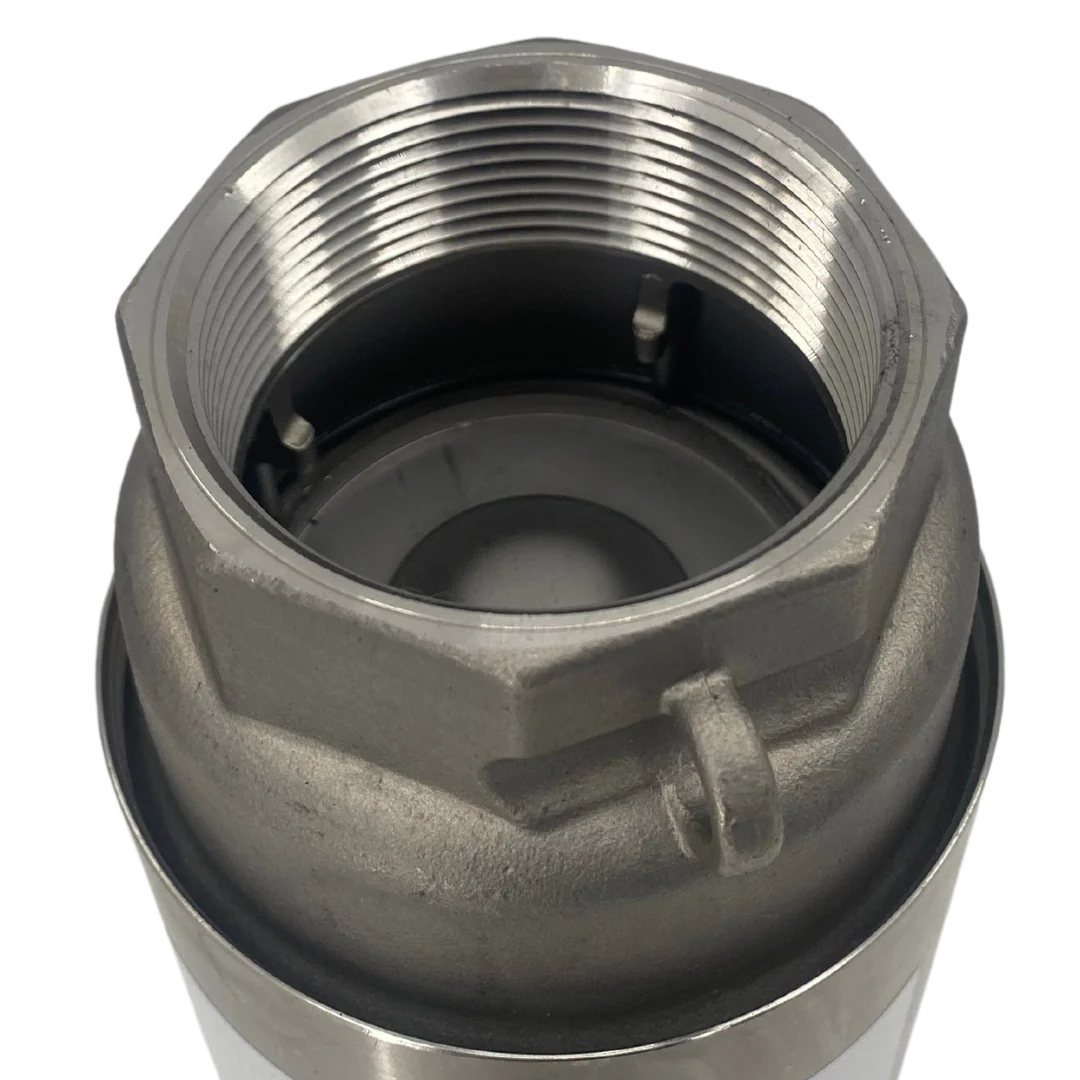

This RPS pump uses a hearty 3 Wire Single Phase 5HP Motor and 3.85″ diameter pump end. The Outlet includes a built in check valve, most people add on an additional external check valve as well. The most efficient brushless motors mean no replacement of carbon brushes and years of smooth, reliable performance. Impellers are made of a composite material resistant to abrasion and chemical damage. Encapsulated winding for superior short protection. The entire body is made of corrosion resistant 304 stainless steel, and compliant to all drinking water standards. Includes a starter box matched to the pump HP with starting capacitor.

RPS engineers recommend 5HP pumps use at least 10 gauge wire up for wire lengths up to 200 feet, 8 gauge up to 320 feet, 6 gauge up to 500 feet, 4 gauge up to 800 feet.

Outlet Size: 2"

✅  NSF Drinking Water and UL Compliant

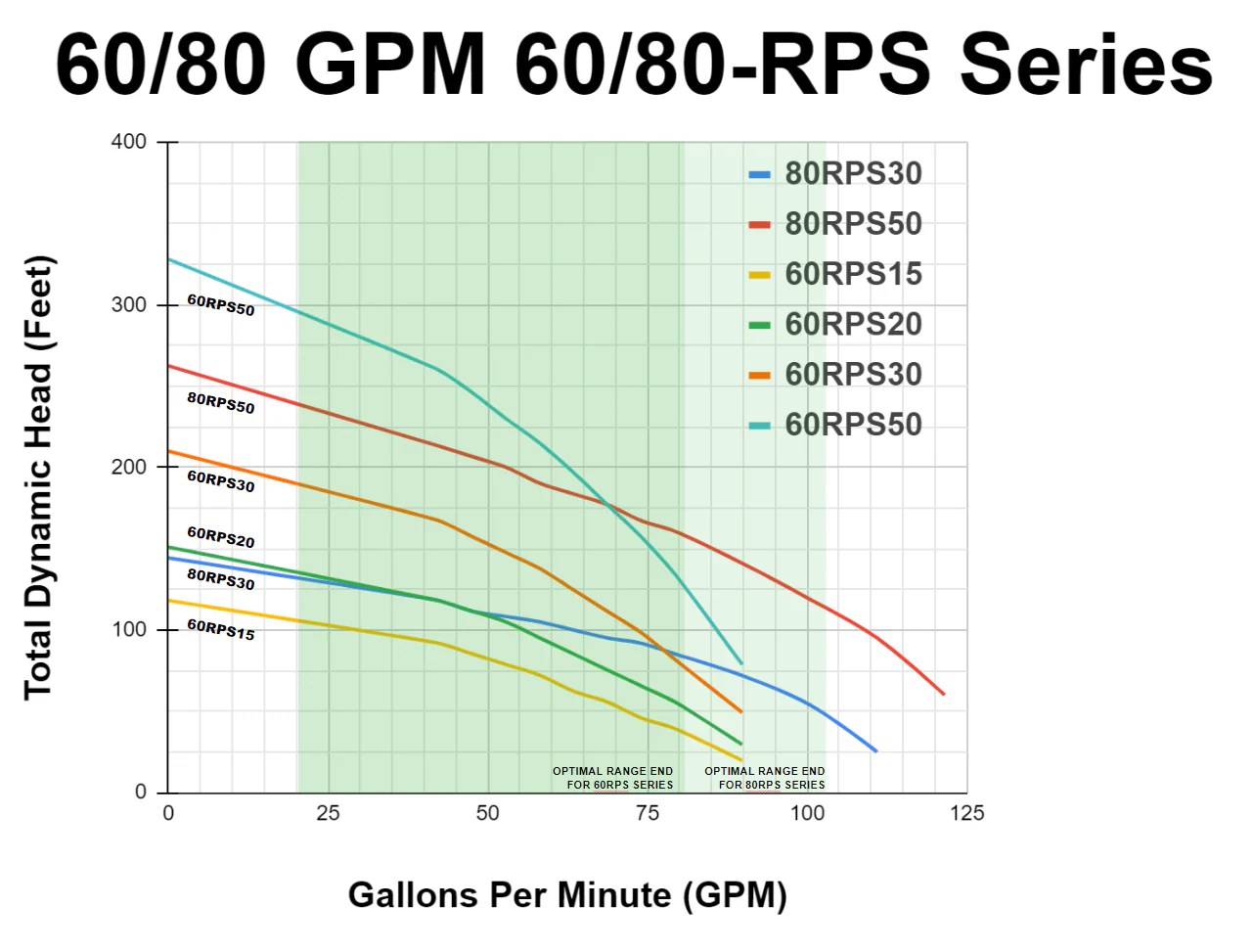

Total Head	Gallons Per Minute (GPM)
No head	120
25 feet	120
50 feet	120
75 feet	115
100 feet	110
125 feet	95
150 feet	85
175 feet	70
200 feet	60
225 feet	55
250 feet	45
275 feet	35
Above 275 feet	Size Up for Optimal Performance



Using a pressure tank or pressure system? You'll need to add the depth of your well with the PSI in feet of head to get your "Total Head" number for sizing.

10 PSI = 23 feet of head

20 PSI = 46 feet of head

30 PSI = 70 feet of head

40 PSI = 90 feet of head

50 PSI = 115 feet of head

60 PSI = 140 feet of head

Example: 50 foot (well depth) + 90 feet of head (from a 40 PSI pressure tank) = 140 feet of total head. If your total head number exceeds this pumps ability range, size up to get a similar flow with higher head ability!

Need more water? Check out the 90RPS Series Models!
