RPS 15HP 480V 400RPS150, Up to 140FT Head, 275 to 528GPM, Stainless Steel Submersible Pump End + Motor
The RPSĀ Steel Flow line of pumps is perfect for any industrial, agriculture, pond or orchard project needing high gallon per minute flow rates. Pumps are fully stainless steel.Ā
ā Ā NSF Drinking Water and UL Compliant
Includes...

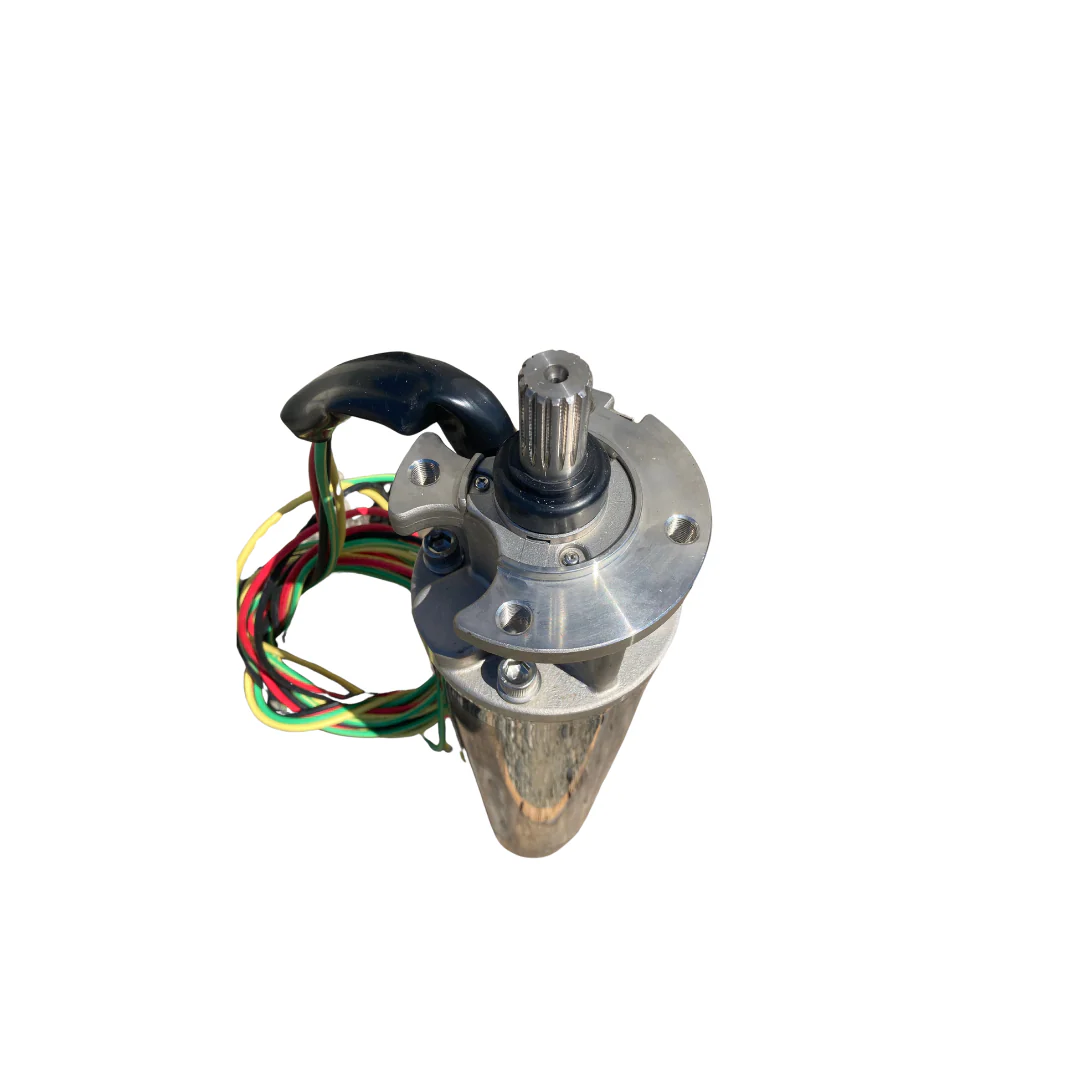

- 15HP Three phase, 480V, 3 wire (3+G), 6" Diameter Motor EndĀ

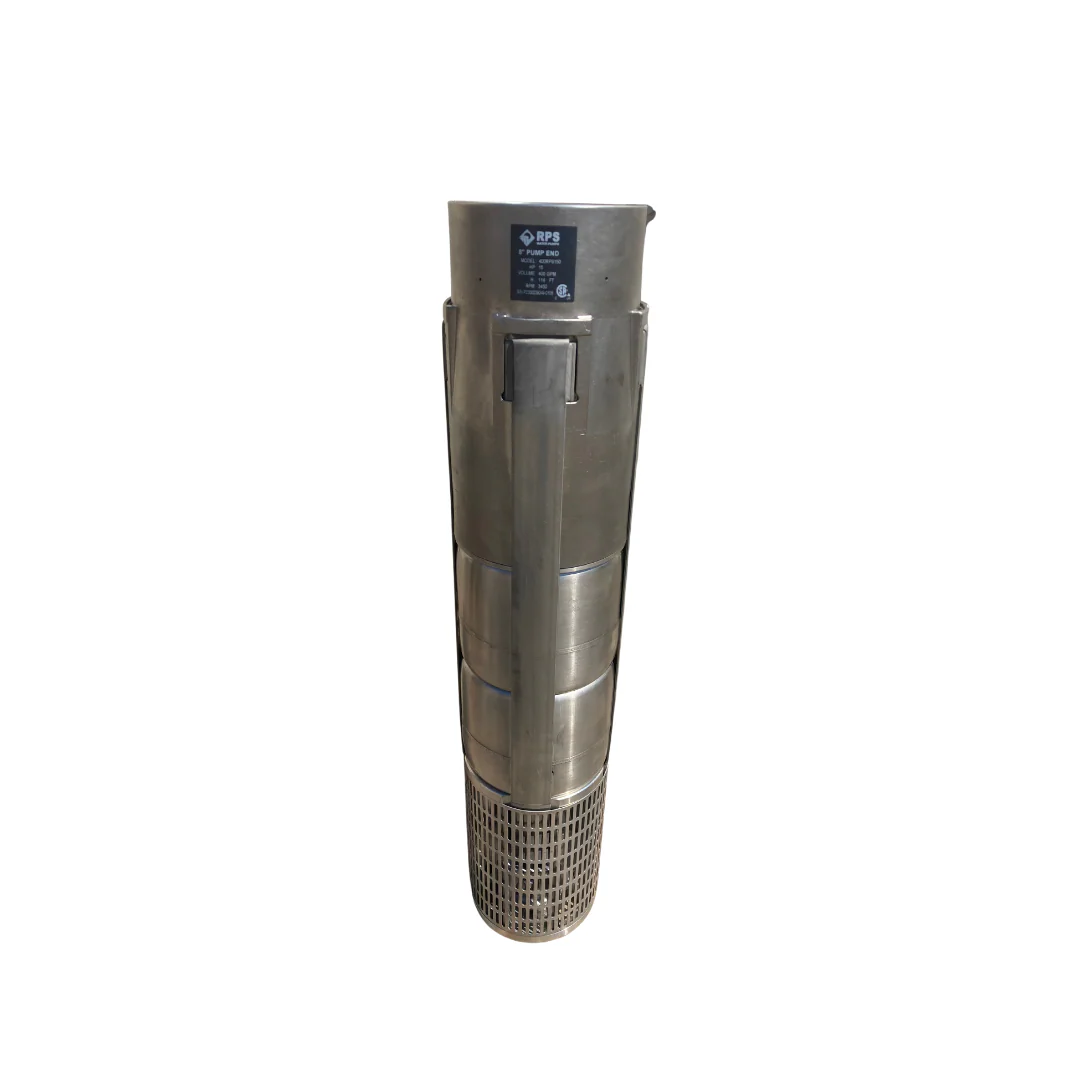

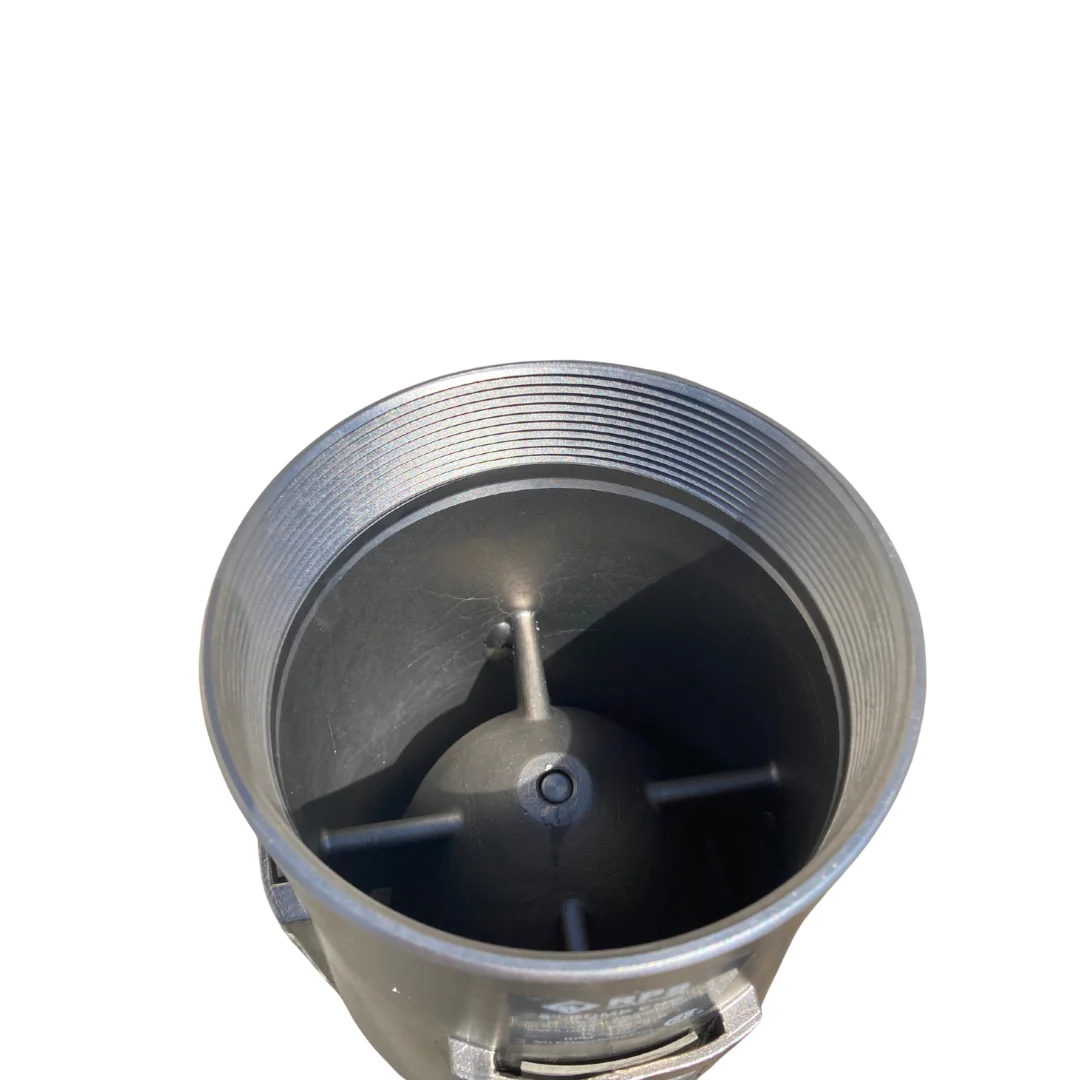

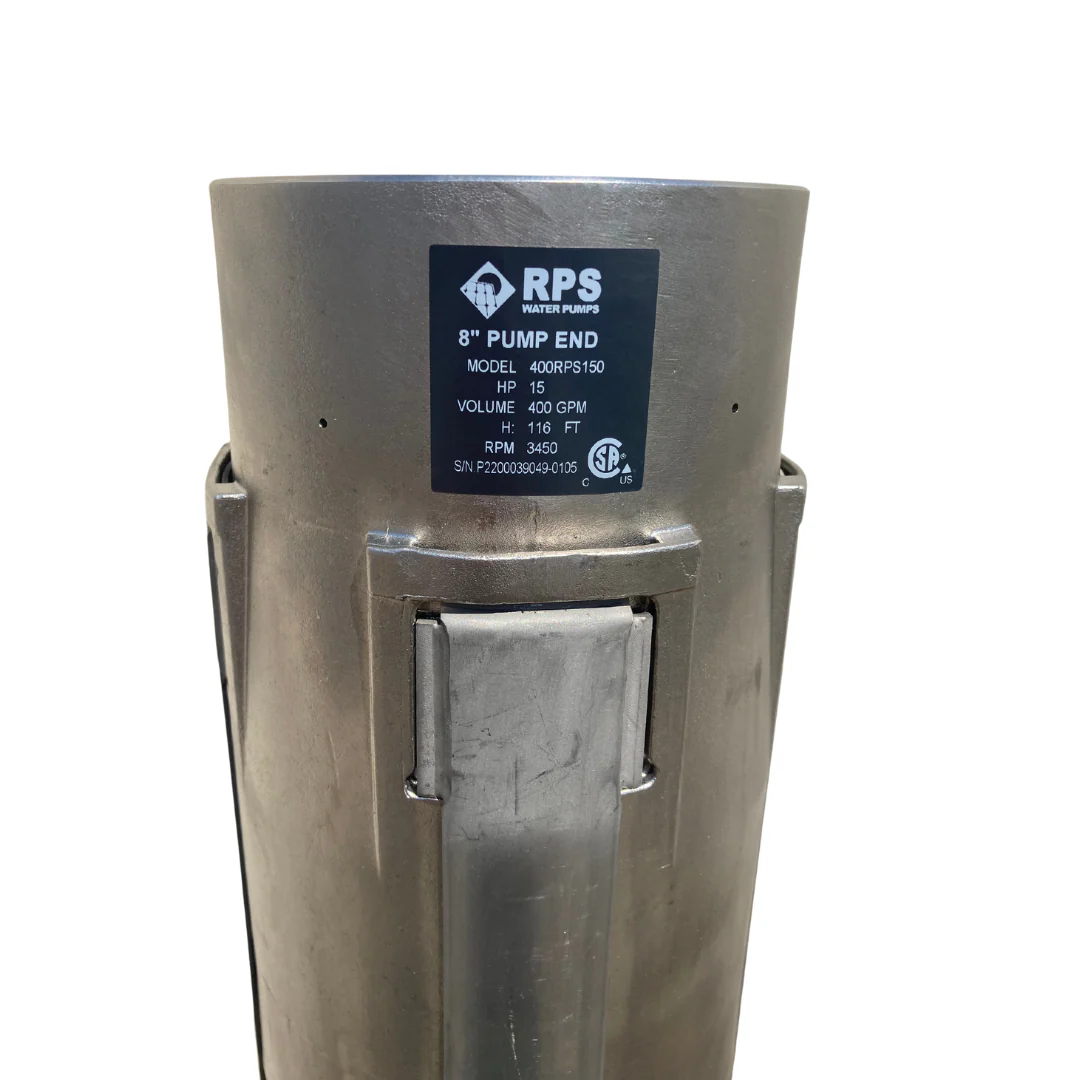

- 5" outlet 400RPS150 275-528GPM Pump End, 8" Outside Diameter

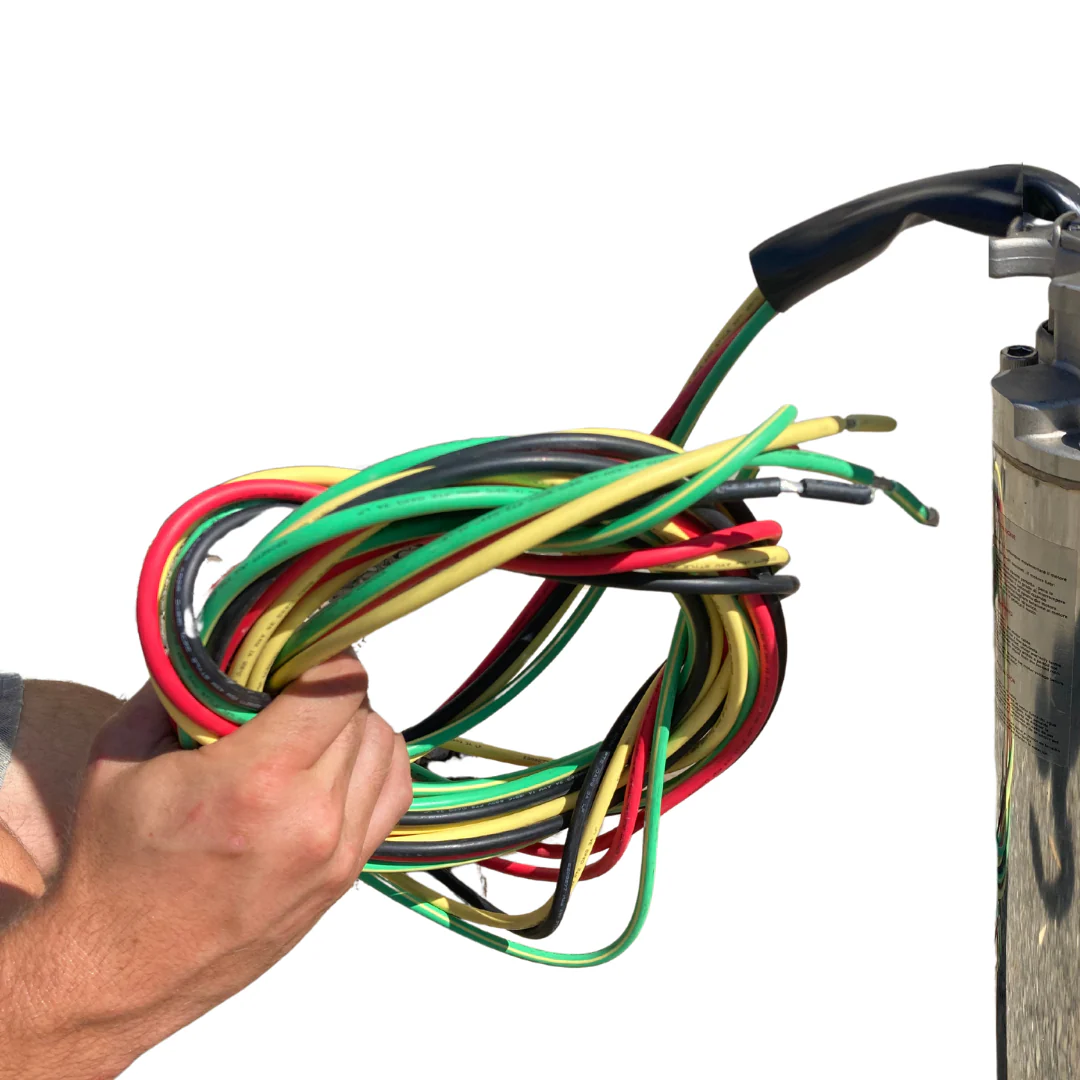

- 3 Wire (3 Hot + Ground) w/ 6 foot pigtail of 10 gauge wire off the motorĀ
- Back 40 Crystal Clear Splice Kit for connecting pigtail to more submersible pump cable w/ four crimps and four crystal clear shrink tubing. Special larger crimps are included to accommodate up to 8Ga wire.Ā Wires are not pre-crimped.Ā
Customer Supplied Magnetic Starter Box.Ā
| Total Head | Gallons Per Minute (GPM) |
| No head | 528 |
| 10 feet | 528 |
| 20 feetĀ | 528 |
| 30 feet | 528 |
| 40 feetĀ | 528 |
| 50 feet | 528 |
| 60 feet | 528 |
| 70 feet | 528 |
| 80 feet | 510 |
| 90 feet | 482 |
| 100 feet | 453 |
| 110 feet | 419 |
| 120 feet | 370 |
| 130 feetĀ | 317 |
| 140 feet | 274 |
| Above 140 feetĀ | Size UpĀ for Optimal Performance |
Ā Ā
