RPS 15HP 480V 650RPS150, Up to 85FT Head, 317 to 793GPM, Stainless Steel Submersible Pump End + Motor
The RPSĀ Steel Flow line of pumps is perfect for any industrial, agriculture, pond or orchard project needing high gallon per minute flow rates. Pumps are fully stainless steel.Ā
ā Ā NSF Drinking Water and UL Compliant
Includes...

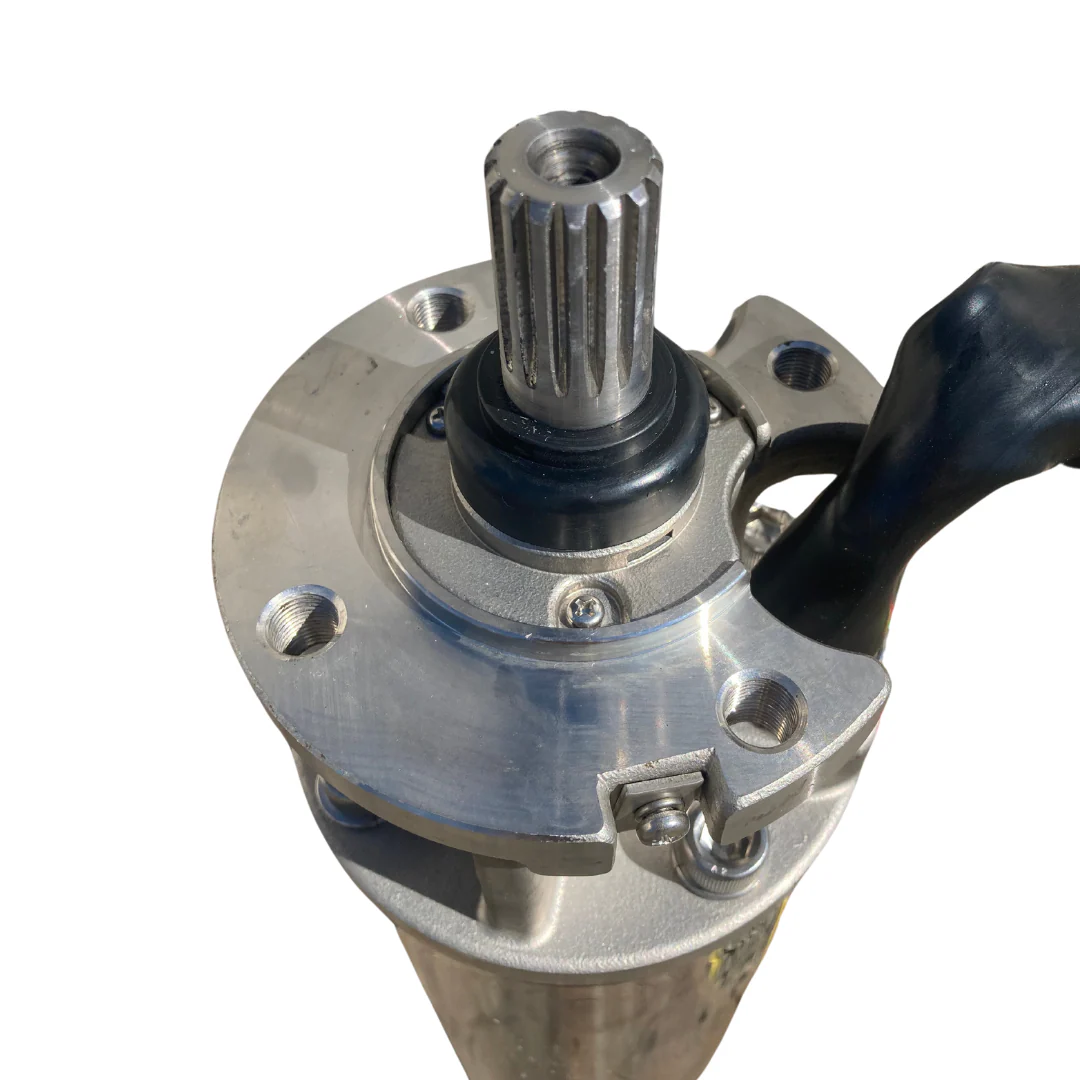

- 15HP Three phase, 480V, 3 wire (3+G), 6" Diameter Motor EndĀ
- 6" outlet 650RPS150 317-793GPM Pump End, 10" Outside Diameter
- 3 Wire (3 Hot + Ground) w/ 6 foot pigtail of 10 gauge wire off the motorĀ
- Back 40 Crystal Clear Splice Kit for connecting pigtail to more submersible pump cable w/ four crimps and four crystal clear shrink tubing. Special larger crimps are included to accommodate up to 8Ga wire.Ā Wires are not pre-crimped.Ā
Customer Supplied Magnetic Starter Box.Ā
| Total Head | Gallons Per Minute (GPM) |
| No head | 793 |
| 20 feet | 793 |
| 30 feetĀ | 793 |
| 40 feet | 793 |
| 50 feetĀ | 710 |
| 60 feetĀ | 655 |
| 70 feetĀ | 575 |
| 80 feetĀ | 410 |
| 85 feetĀ | 317 |
| Above 85 feetĀ | Size UpĀ for Optimal Performance |
