RPS 30HP 480V 800RPS300, Up to 125FT Head, 445 to 1030GPM, Stainless Steel Submersible Pump End + Motor
The RPSĀ Steel Flow line of pumps is perfect for any industrial, agriculture, pond or orchard project needing high gallon per minute flow rates. Pumps are fully stainless steel.Ā
ā Ā NSF Drinking Water and UL Compliant
Includes...

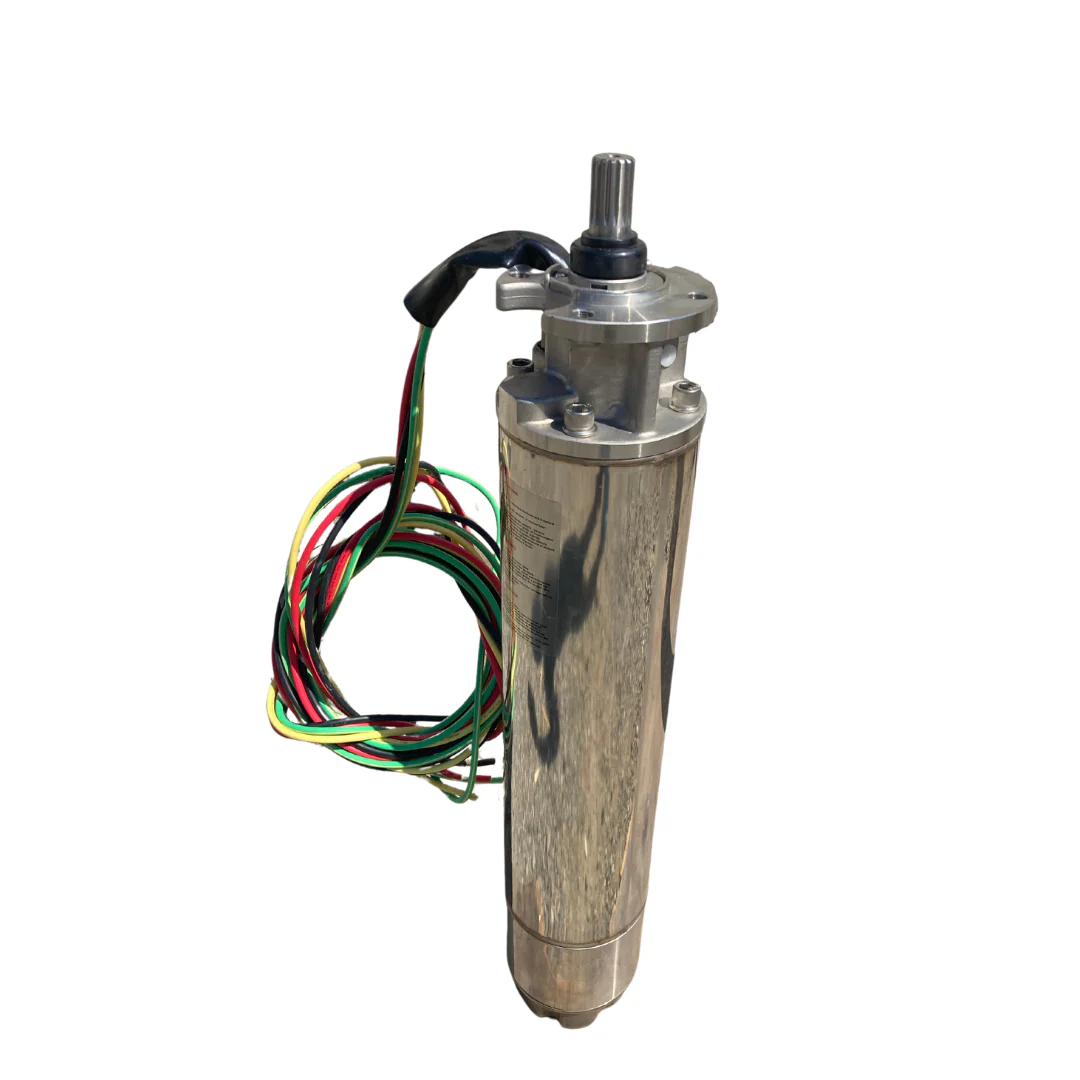

- 30HP Three phase, 480V, 3 wire (3+G), 6" Diameter Motor EndĀ

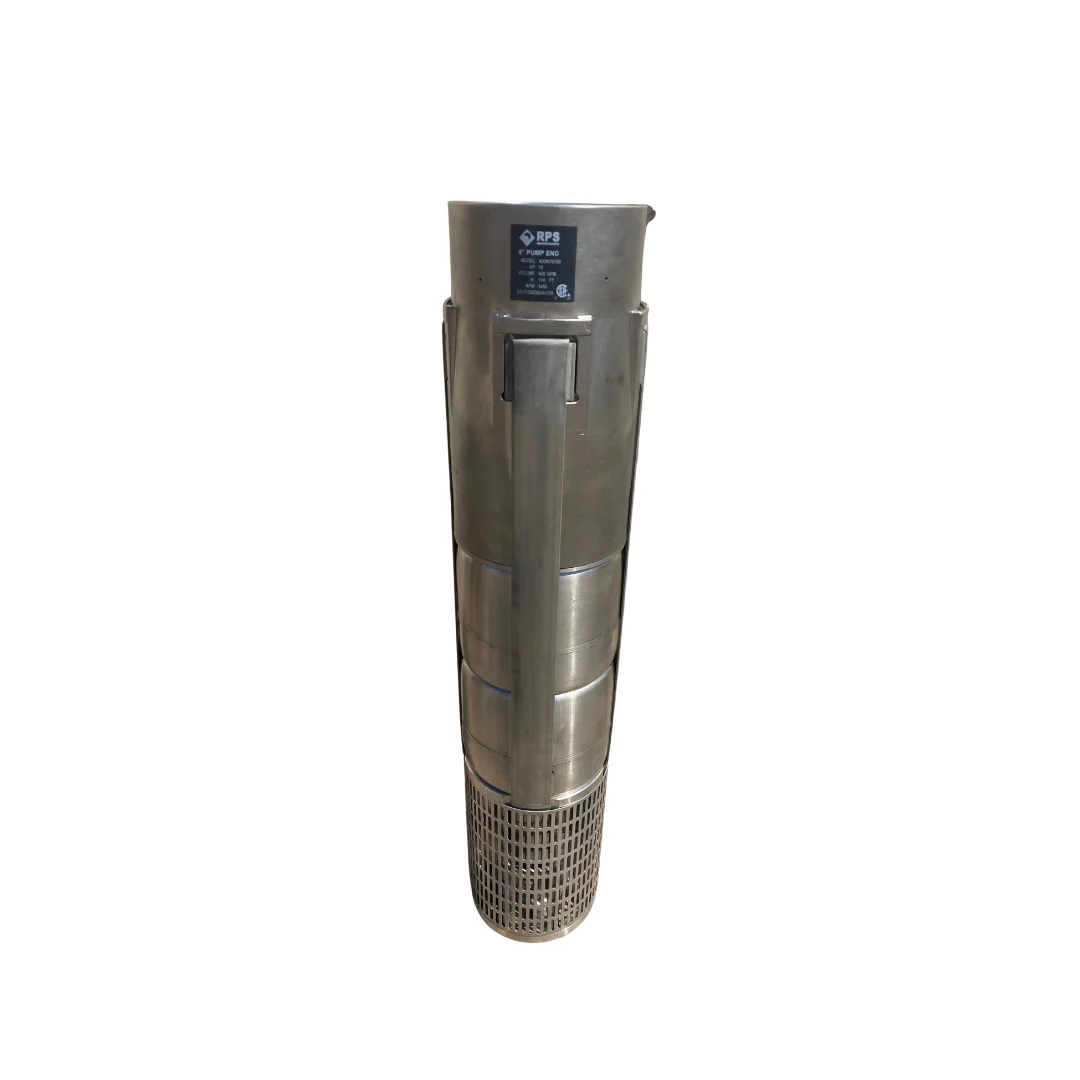

- 6" outlet 800RPS300 445-1030 GPM Pump End, 8.4" Outside Diameter

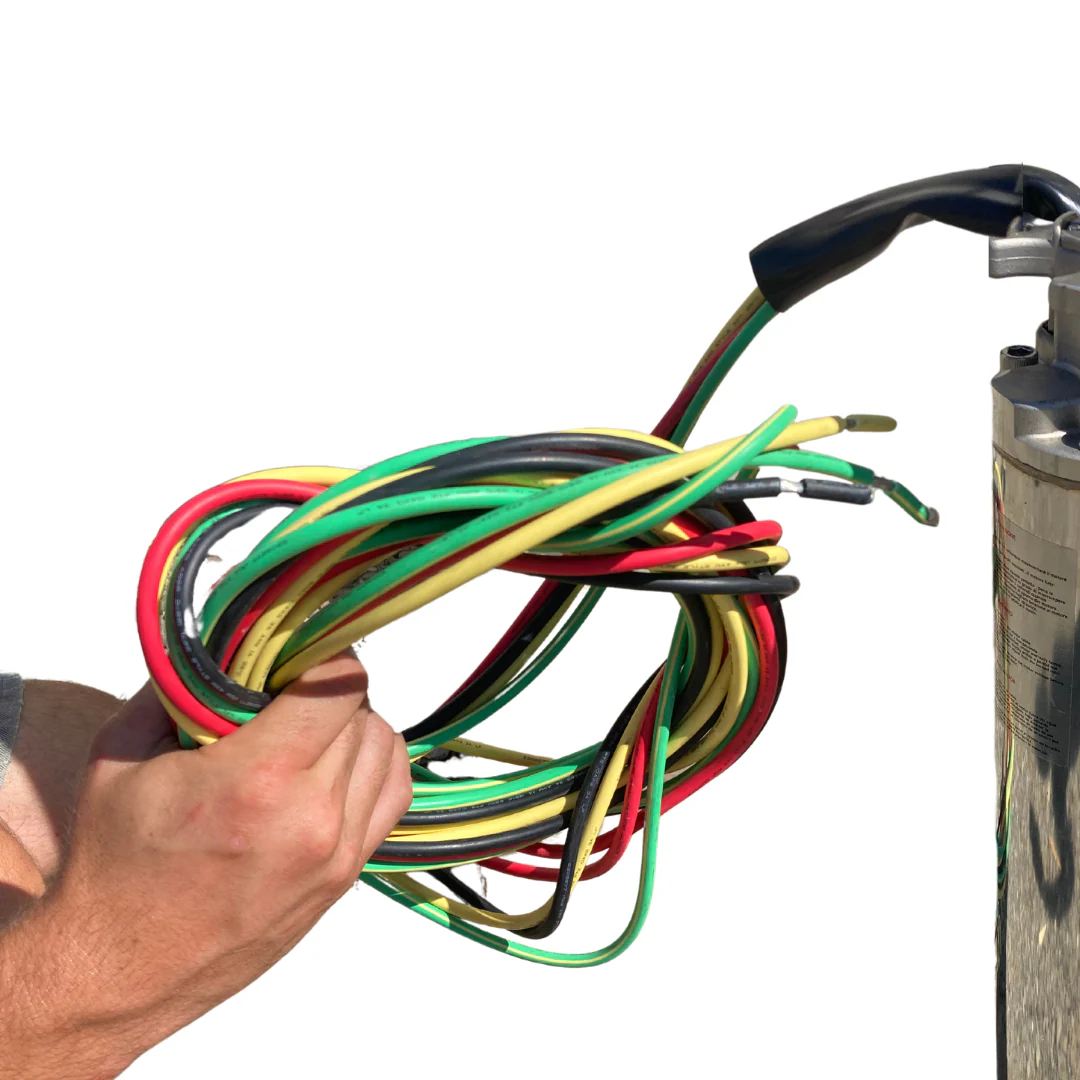

- 3 Wire (3 Hot + Ground) w/ 6 foot pigtail of 10 gauge wire off the motorĀ
- Back 40 Crystal Clear Splice Kit for connecting pigtail to more submersible pump cable w/ four crimps and four crystal clear shrink tubing. Special larger crimps are included to accommodate up to 8Ga wire.Ā Wires are not pre-crimped.Ā
Customer Supplied Magnetic Starter Box.Ā
| Total Head | Gallons Per Minute (GPM) |
| No head | 1030 |
| 30 feet | 1030 |
| 40 feetĀ | 1030 |
| 50 feet | 1030 |
| 60 feetĀ | 1022 |
| 70 feet | 958 |
| 80 feet | 860 |
| 90 feet | 740 |
| 125 feet | 445 |
| Above 125 feetĀ | Size UpĀ for Optimal Performance |
Ā Ā
