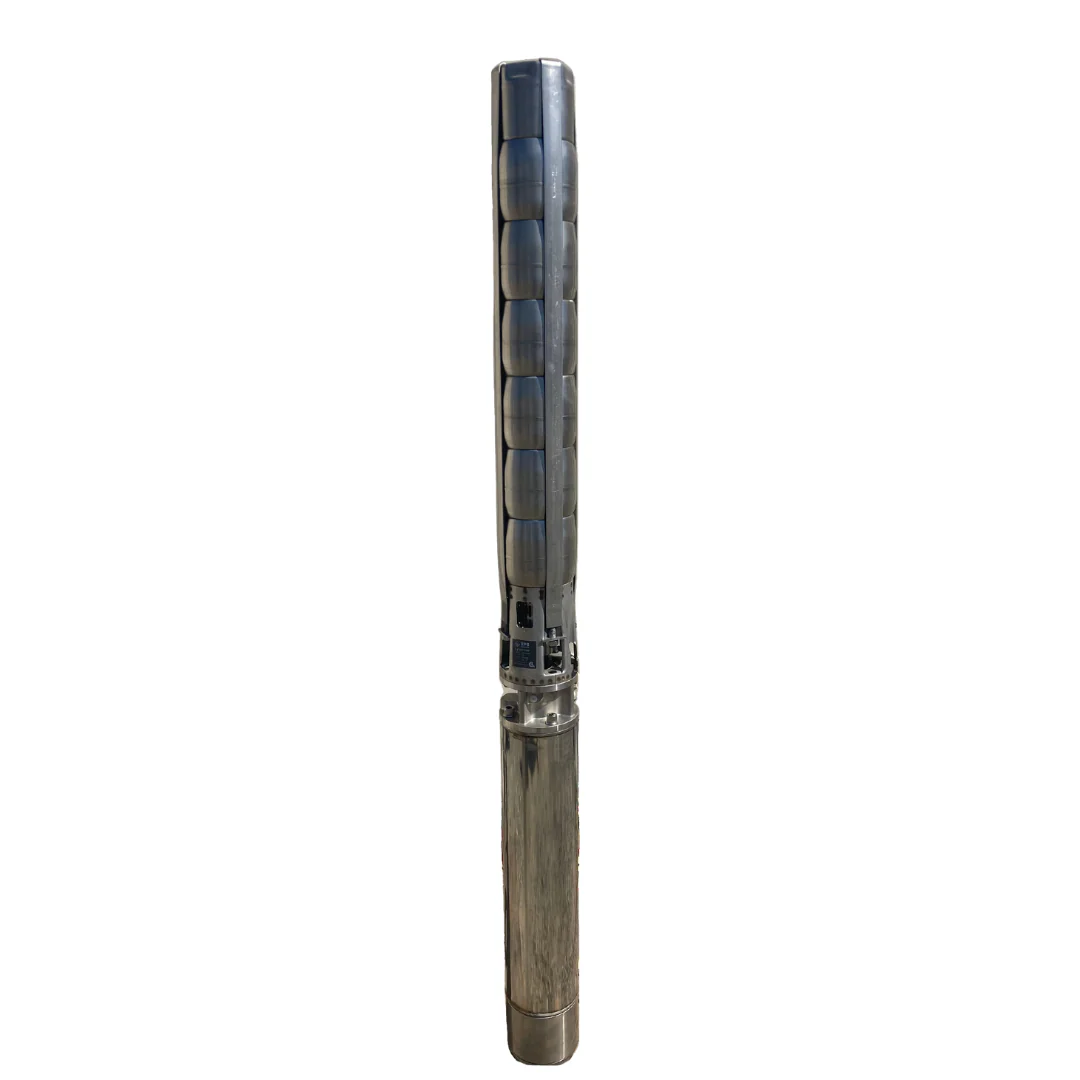

RPS 20HP 480V 300RPS200, Up to 325FT Head, 185 to 396GPM, Stainless Steel Submersible Pump End + Motor
The RPS Steel Flow line of pumps is perfect for any industrial, agriculture, pond or orchard project needing high gallon per minute flow rates. Pumps are fully stainless steel.Ā
ā Ā NSF Drinking Water and UL Compliant
Includes...

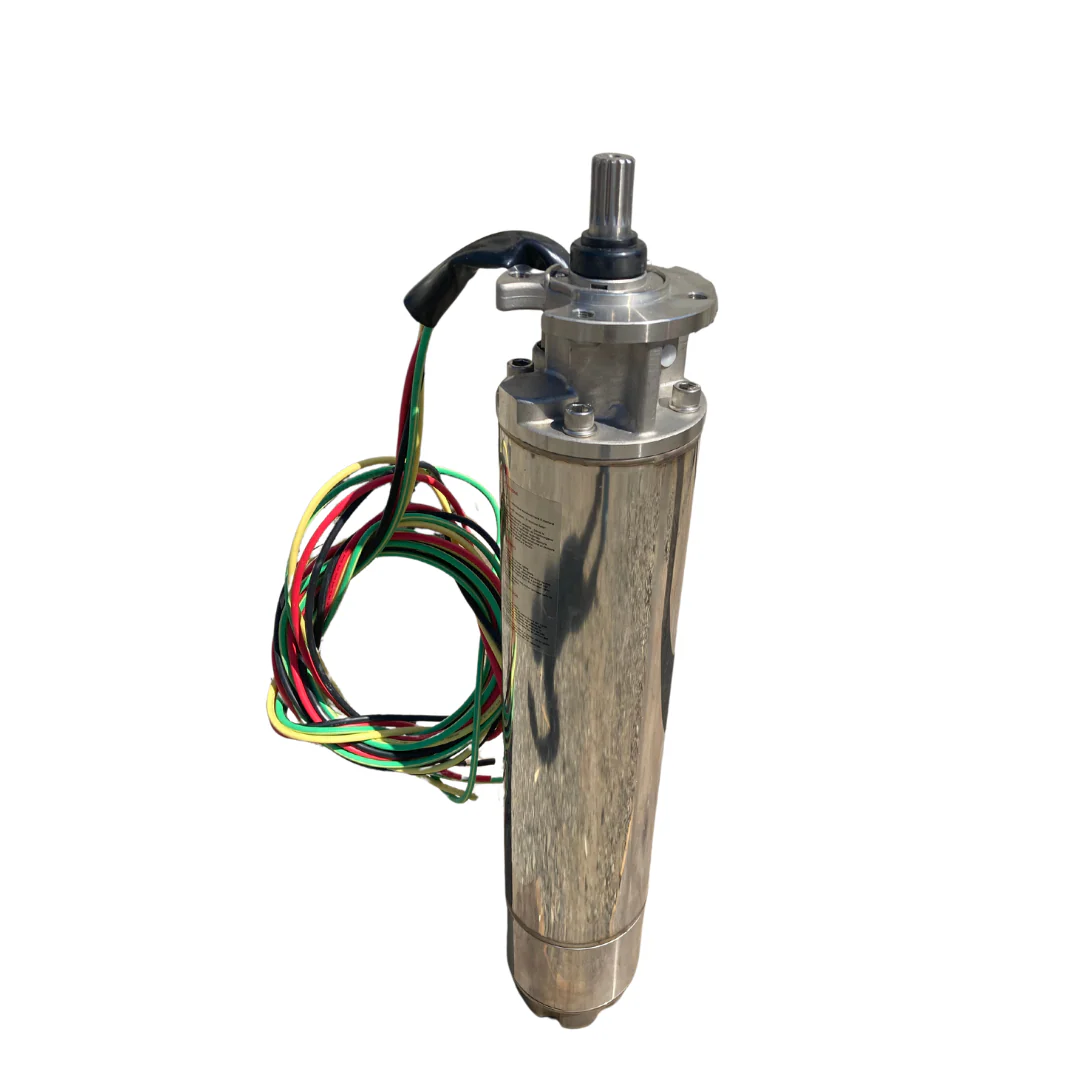

- 20HP Three phase, 480V, 3 wire (3+G), 6" Diameter Motor EndĀ

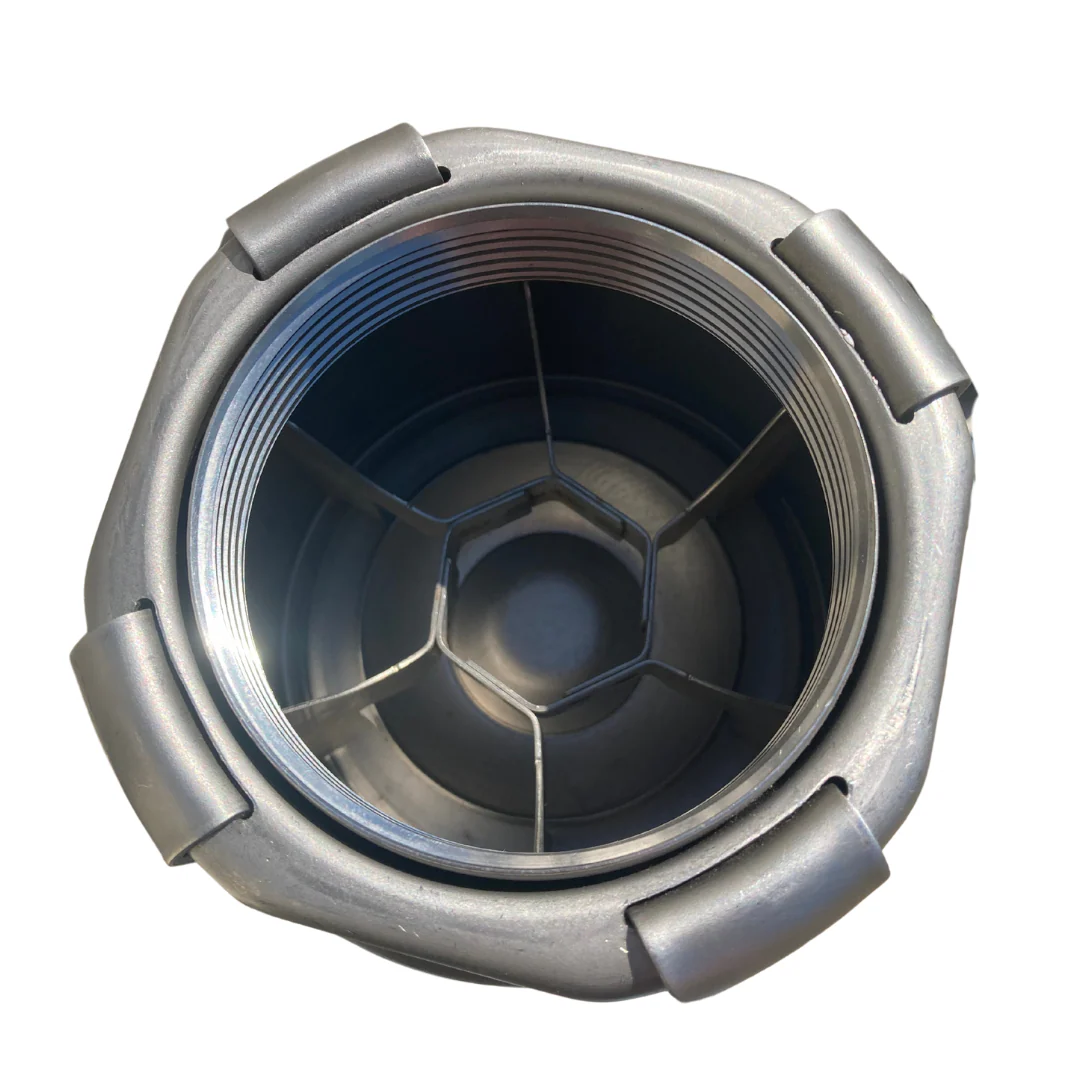

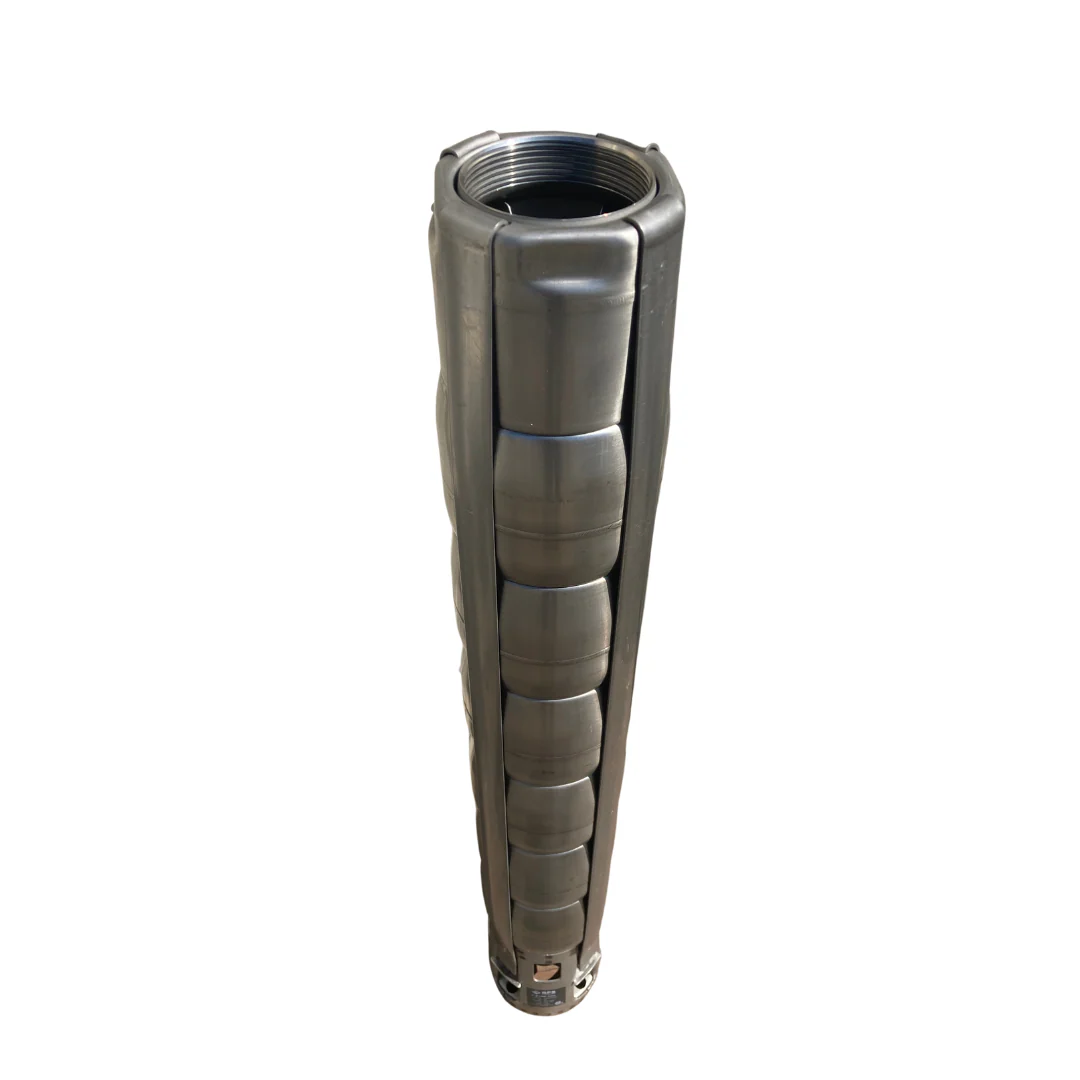

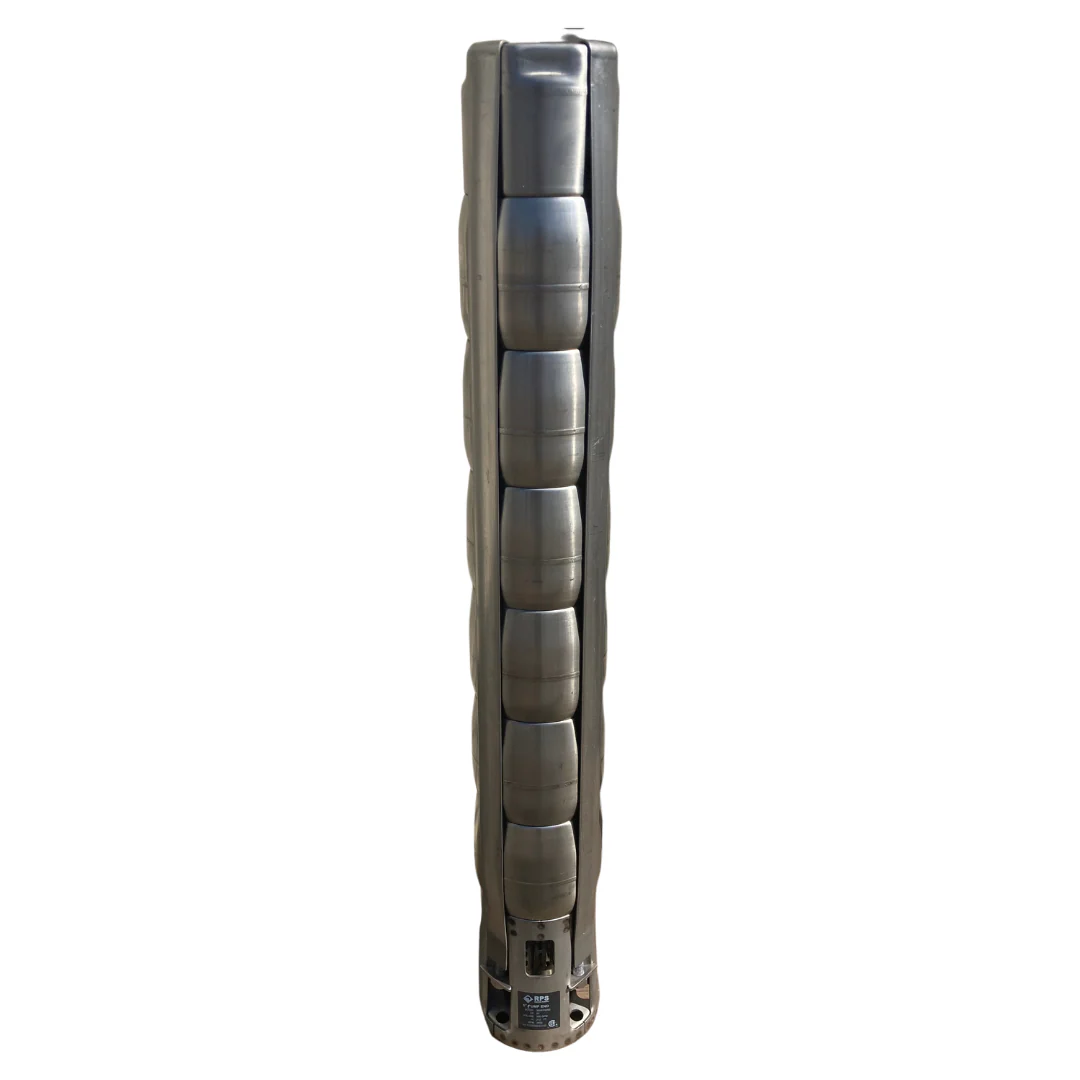

- 3" outlet 300RPS200 185-396GPM Pump End, 6" Outside Diameter
- 3 Wire (3 Hot + Ground) w/ 6 foot pigtail of 10 gauge wire off the motorĀ
- Back 40 Crystal Clear Splice Kit for connecting pigtail to more submersible pump cable w/ four crimps and four crystal clear shrink tubing. Special larger crimps are included to accommodate up to 8Ga wire.Ā Wires are not pre-crimped.Ā
Customer Supplied Magnetic Starter Box.Ā
| Total Head | Gallons Per Minute (GPM) |
| No head | 396 |
| 25 feet | 396 |
| 50 feetĀ | 396 |
| 75 feet | 396 |
| 100 feetĀ | 396 |
| 125 feetĀ | 396 |
| 150 feetĀ | 371 |
| 175 feetĀ | 345 |
| 200 feetĀ | 315 |
| 225 feet | 275 |
| 250 feet | 238 |
| 275 feet | 211 |
| 300 feet | 185 |
| Above 400 feetĀ | Size UpĀ for Optimal Performance |
