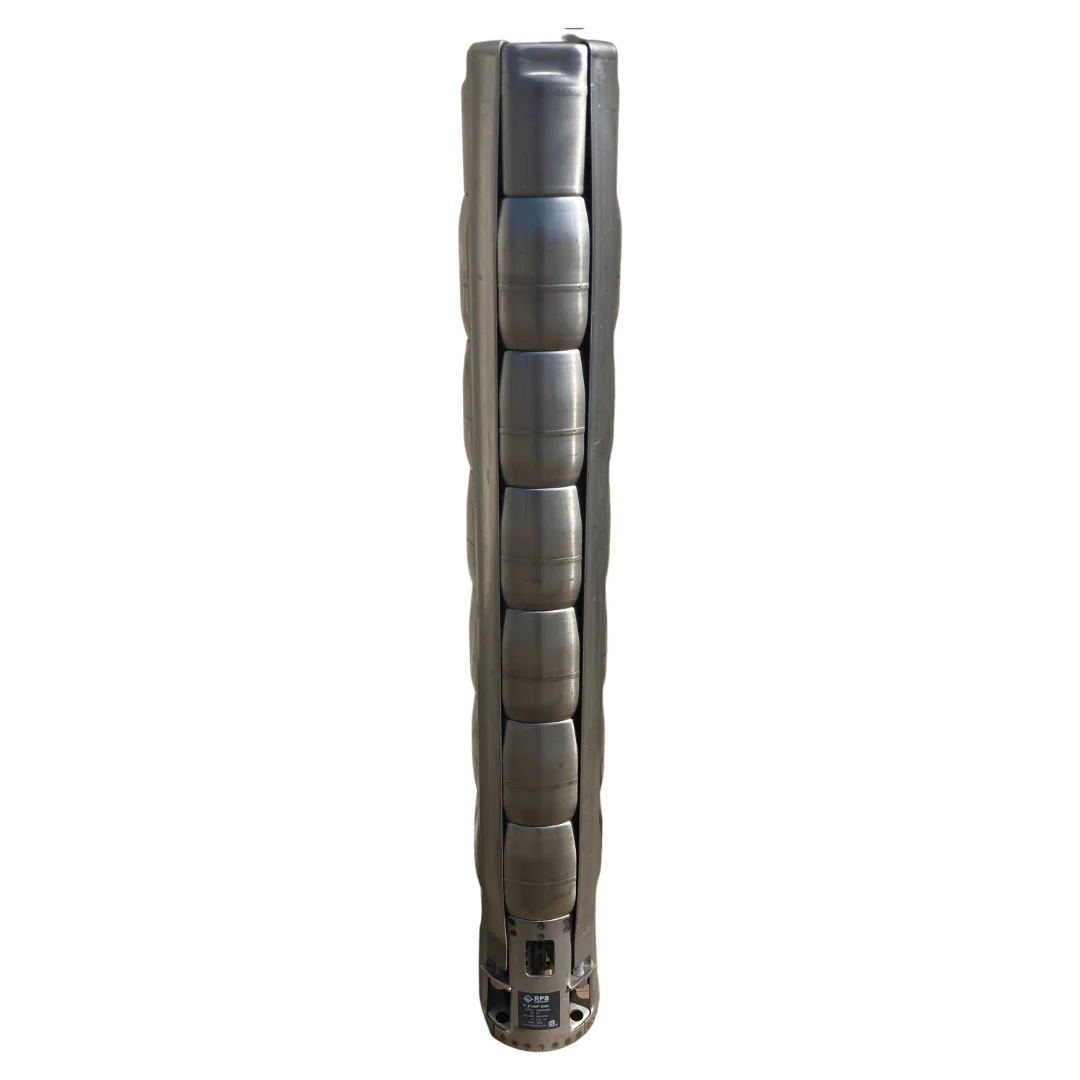

RPS 15HP 480V 300RPS150, Up to 200FT Head, 200 to 396GPM, Stainless Steel Submersible Pump End + Motor
The RPSĀ Steel Flow line of pumps is perfect for any industrial, agriculture, pond or orchard project needing high gallon per minute flow rates. Pumps are fully stainless steel.Ā
ā Ā NSF Drinking Water and UL Compliant
Includes...
- 15HP Three phase, 480V, 3 wire (3+G), 6" Diameter Motor EndĀ

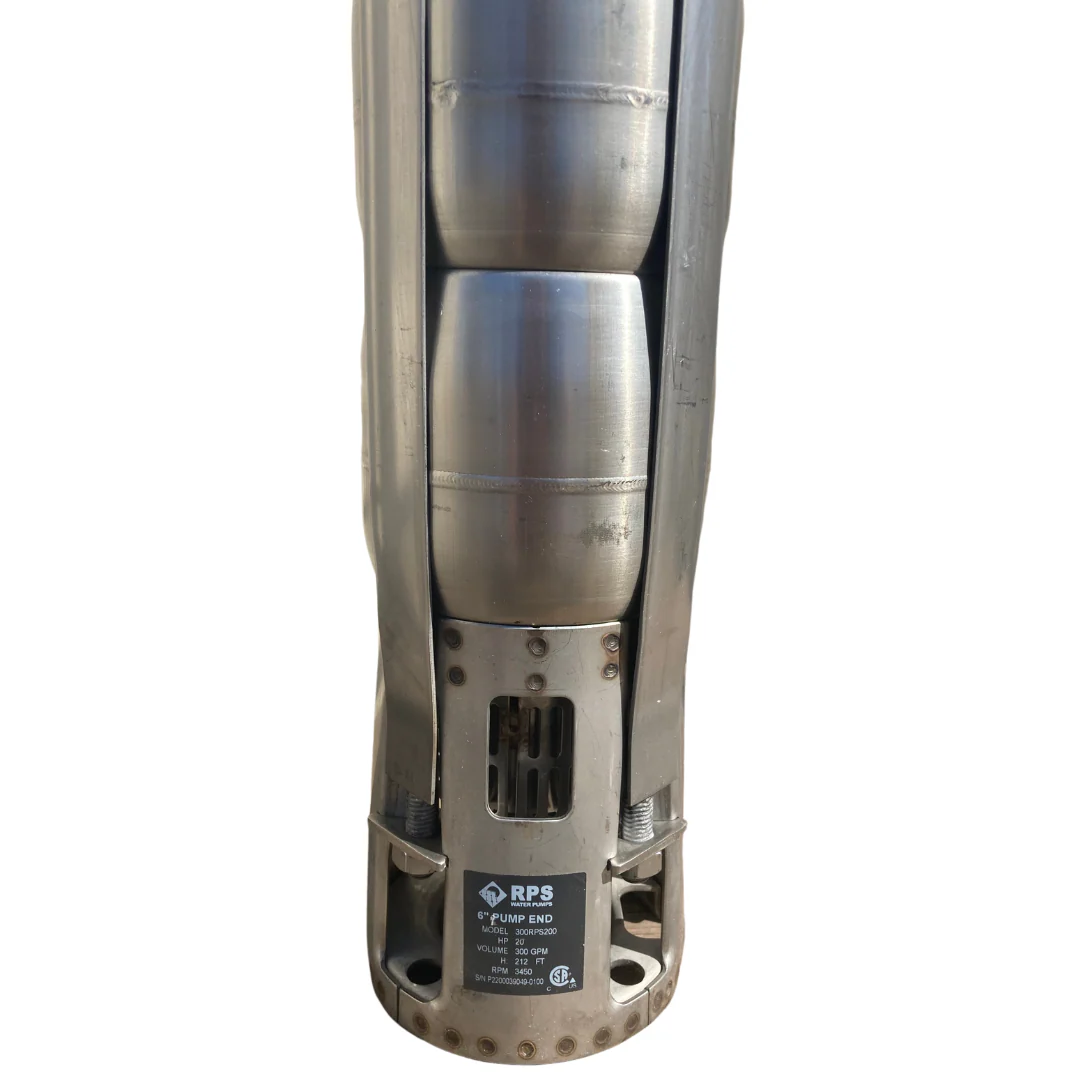

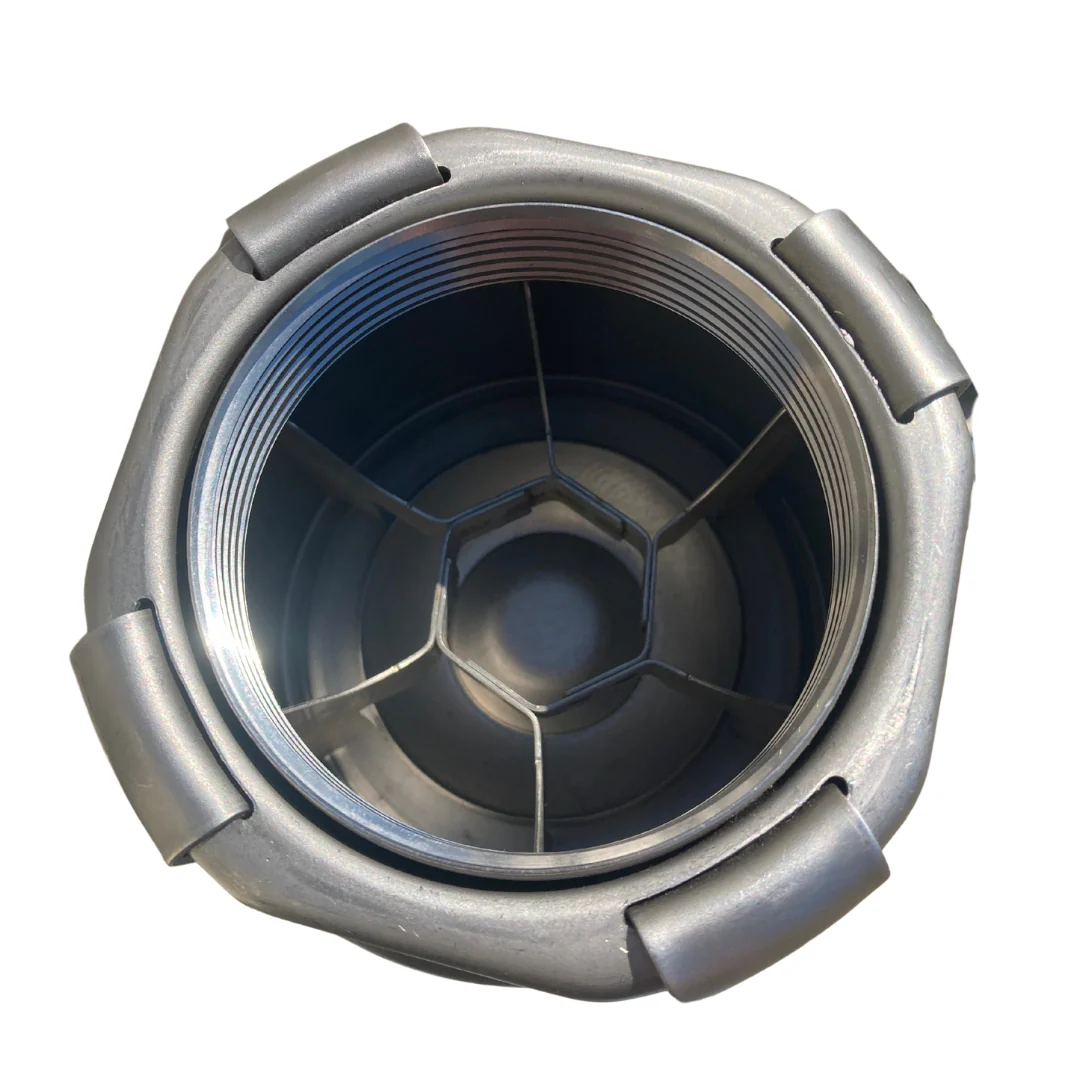

- 3" outlet 300RPS150 200-396GPM Pump End, 6" Outside Diameter
- 3 Wire (3 Hot + Ground) w/ 6 foot pigtail of 10 gauge wire off the motorĀ
- Back 40 Crystal Clear Splice Kit for connecting pigtail to more submersible pump cable w/ four crimps and four crystal clear shrink tubing. Special larger crimps are included to accommodate up to 8Ga wire.Ā Wires are not pre-crimped.Ā
Customer Supplied Magnetic Starter Box.Ā
| Total Head | Gallons Per Minute (GPM) |
| No head | 396 |
| 50 feet |
396 |
| 60 feetĀ |
396 |
| 70 feet |
396 |
| 80 feetĀ |
396 |
| 90 feetĀ |
396 |
| 100 feetĀ | 388 |
| 110 feetĀ | 374 |
| 120 feetĀ | 345 |
| 130 feet | 232 |
| 140 feet | 320 |
| 150 feet | 299 |
| 160 feet | 271 |
| 170 feet | 244 |
| 180 feet | 230 |
| 190 feet | 211 |
| 200 feet | 200 |
| Above 200 feetĀ | Size UpĀ for Optimal Performance |
Ā Ā
